Cornell Pump is closed December 24th and 25th, 2020 to celebrate Christmas Eve and Christmas Day. We hope everyone enjoys a festive holiday, safe and healthy. We will be open again on Monday December 28, 2020 at 7AM PST.
Cornell has pump builds with threaded impeller installations in several of our instructional videos on YouTube. We have created a quick companion video that provides some “how-tos” when dealing with this type of Impeller. While the video is short—only 90 seconds long—it shows how a shaft wrench helps with threaded impeller installation or removal. It also talks about cleaning the threads and making use of anti-seize in installing the impeller. Check out the video full of helpful information:
You can find dozens of other instruction and promotional videos on our YouTube Channel: https://www.youtube.com/channel/UCSxU56YPorH2CAdTK4zGGog
A large tomato grower in Central California was having issues with pumps that were being run unattended. Without someone there to watch the pumps continuously, they run into operational problems.
The fleet of several dozen pumps would see intermittent cavitation, causing pump damage. Bearing failures were another issue. Frequently, debris would enter the pump suction and restrict flow, or in worst cases, trip motors. All of these instances caused downtime to the facility, maintenance staff time and resources, as well as purchase of parts. Additionally, much of the fleet was older, causing issues with spares, and they operate in a tight labor market, so skilled labor for pump maintenance or even more casual labor to monitor the pumps, was hard to secure.

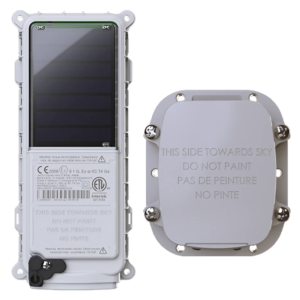

The grower wanted alerts that helped them stop a problem before it turned critical. They became aware of Industrial Internet of Things Monitoring (IIOT) as a possibility. The considered options, and felt that Cornell Co-Pilot™ was the right mix of escalating alerts, geolocation, being able to start and stop the pump remotely, and multiple logins so supervisors and workers can all monitor pumps independently.
One of the first wins the facility saw with Co-Pilot was geolocation. With pumps spread over several thousand acres, being able to precisely track mobile assets was a big time save. Later, as technicians were catching problems before they become critical, the additional cost-saving and maintenance value of Co-Pilot came into sharper focus.
The grower has been operating the Co-Pilot system for more than six months (as of December 2020 for creation of app sheet), and in that time they estimate they have saved over $12K in downtime and repairs. The system paid for itself in a few months. The expect five years’ service life of the Co-Pilots would mean more than $75K in savings. That is no small “tomatoes.” Download the full story as a PDF.
We went through the build of a 6822MX Redi-Prime pump –look for expanded content to come to our YouTube channel soon. If you want to see great how-to and promotional recordings now, there are more than 40 videos up on YouTube: https://www.youtube.com/c/cornellpumpcompany/featured . You can watch videos, subscribe, and make suggestions for additional videos there.
A feature on many Cornell clear liquid pumps, an external hydraulic balance line, allows better performance, without having to drill holes in impellers. The following copy comes from Cornell Pump’s Hydraulic Seminar Workbook—lasted updated in 2019.
THE EXTERNAL HYDRAULIC BALANCE LINE
To lower pressure in the stuffing box (or seal chamber) and to attempt to limit the inherent axial force created by the impeller, traditional centrifugal pump designs use large holes bored through the impeller. Cornell has a more effective method –THE EXTERNAL HYDRAULIC BALANCE LINE.
High pressure liquid from the volute passes through the hub ring clearances into the cavity between the stuffing box and the impeller. Liquid returns via the balance line to the region of lower pressure at the pump inlet, taking with it any sand or silt that may otherwise build up at the stuffing box. This method reduces turbulence, improves hydraulic efficiency, increases the life of packing, mechanical seals, and bearings – provides positive control of axial forces. It also reduces wear because sand is not trapped behind the impeller, near the shaft.
Cornell Pump will be closed on Monday, September 7, 2020 to celebrate Labor Day. We encourage everyone to have a safe and fun holiday!
We will back open for business on Tuesday, September 8, 2020 at 7:30 a.m. PDT.
Included in the Cornell Virtual Pump School packet:
- Installation and Care workbook: shows procedures on how to properly install a pump and keep it running effectively.
- Pump Seminar workbook: provides formulas and explanations of pump hydraulics.
- Condensed Hydraulic Databook: A pocket-sized resource for calculating friction loss.
- Various brochures: showing in detail some of the innovations of Cornell Pump, such as Co-Pilot pump monitoring system.
- Assembly reference materials: for reference during the pump build session.
- Cornell fidget spinner: helps keep focus, and has a bottle opener for a networking event libation.
- MagLite® Flashlight: Branded with Cornell Co-Pilot, this premium can help light your way to great learning, or at least assist you when inspecting a pump.
- USB Drive: Contains presentations that we will be discussing during the classes. We hope this makes note taking and following along easier.
These packets are being sent to registrants so they can prepare for Cornell Pump’s Virtual Pump School on September 15 through 17, 2020. They have already reserved their packet—and you can too. Learn more about Virtual Pump School, and register online.
Virtual Pump School is just $79USD for three great days of learning, resources, and networking—plus you can re-watch the classes for a month afterwards. Sign up now!
Making the right pump selection is very important; the right choice can reduce energy costs and provide decades of strong service. The wrong choice could dramatically increase operation and maintenance costs, and limit the life of the pump.
This reminder of what to check comes from Cornell Pump’s Hydraulic Seminar workbook. The information is a reminder of lessons about calculating Total Dynamic Head (TDH). Participants at Cornell’s Virtual Pump School 2020, will not only get this handy workbook, but also get numerous presentations (e.g. NPSH, TDH, pump sizing, etc.) that lead to this very topic (Pump Selection) being covered in detail on day three of the school. Plus, you’ll get the Condensed Hydraulic Databook, along with many other reference materials.
Right now, cost for general admission to the school is only $79 USD. But hurry – It goes up to $99 this weekend. Learn more about Virtual Pump School 2020. The school runs September 15 through 17, 2020, with ten sessions total offered per day; five each in Basic and Advanced tracks.
How To Select a Centrifugal Pump
The pump is selected after all the system data has been gathered and computed. The system TOTAL CAPACITY in gallons per minute and TOTAL DYNAMIC HEAD in feet must be determined. You should consider suction submergence, NPSHr and NPSHa, various speeds, other drives (engine, motor, etc.) and all system conditions to optimize the selection.
Typical Pump Installation
- TOTAL DYNAMIC HEAD is the SUM of the following:
- Suction pipe friction (see Condensed Hydraulic Data Book).
- Suction lift (vertical distance, in feet, from lowest expected water surface to center of pump inlet).
- Suction entrance loss (usually figured at one velocity head plus foot valve losses
- Discharge pipe friction (Condensed Hydraulic Data Book).
- Discharge lift (vertical distance, in feet from pump to high point in system).
- Pressure, in feet, for service intended (pressure, in P.S.I., x 2.31 equals feet of head).
- Miscellaneous losses, in feet (for valves, elbow, and all other fittings, see Condensed Hydraulic Data Book).
- For capacity of 320 GPM, total head in feet is determined as follows:
- 28’ Suction friction (6” steel pipe, 20’ long – 1.39’/c x 20’)
- 5’ Suction lift
- 3’ est. Suction entrance loss (1’ vel. Head + 0.49’ + screen loss)
- 14’ Discharge friction (6” steel pipe,1000’ long – 1.39’/c x 1000’)
- 15’ Discharge lift
- 100’ System pressure (43 P.S.I. x 2.31)
- 10’ Miscellaneous losses (Use your own safety factor here)
- 147’ total head (Approx.)
- For capacity of 600 GPM, total head in feet is determined as follows:
- .89’ Suction friction (6” steel pipe, 20’ long – 4.46’/c x 20’)
- 5’ Suction lift
- 5’ est. Suction entrance loss (1’ vel. Head + 1.6’ + screen loss)
- 45’ Discharge friction (6” steel pipe, 1000’ long, – 4.46’/c x 1000’)
- 15’ Discharge lift
- 100’ System pressure (43 PSI x 2.31)
- 15’ Miscellaneous losses (Use your own safety factor here)
- 186’ total head
Cornell Pump’s design for double volutes can help keep radial forces from snapping a shaft, while increasing wear life.
The Double Volute System enables Cornell single stage, end-suction centrifugal pumps to easily handle large volume and high-pressure jobs.
As the impeller adds energy to the fluids, pressure increases around the periphery of the volute. On single volute pumps, the increasing pressure acts against the impeller area and creates unbalanced radial forces. By contrast, the Double Volute System effectively balances these forces around the impeller to reduce shaft flexure and fatigue.
Cornell’s “DVS” design helps keep shafts from breaking, extends the life of packing and mechanical seals, wear rings, and bearings – maintaining high hydraulic efficiency.
This diagram comes from page 3 of Cornell’s Hydraulic & Pumps Seminar workbook, which will feature prominently at our Virtual Pump School. Every attendee gets a print copy of the book, along with other printed materials, and even a Maglite® flashlight. Sign up now—the regular rate ends soon! Only $79 for three great days of learning, resources, and networking!
Cornell is excited to announce the winners of our 5K followers drawing!
When we hit 5,000 followers on LinkedIn, we told those that had followed us, and any that followed us with the next week, they would be entered into a drawing for some Cornell swag. The prizes and winners include:
Cornell Yeti Rambler
- Kevin Paczwa at Rexnard Corporation
- Daniel Trujillo at Rain for Rent
Cornell MagLite Flashlight and Leatherman Knife Combo
- Shelley Hadaway at RWN Pump and Fabrication
- Rod Smith, CPA, CMA at Ship Repair and Construction
Cornell North Face Jacket
- Michael Hill at Sunbelt Rentals
- Richard Hurst at Cargill
And you can get a Cornell MagLite flashlight if you attend our virtual pump school. As part of the mailed packet, we’ll send you a flashlight! Register for Virtual Pump School now – early bird pricing ends on August 15!
